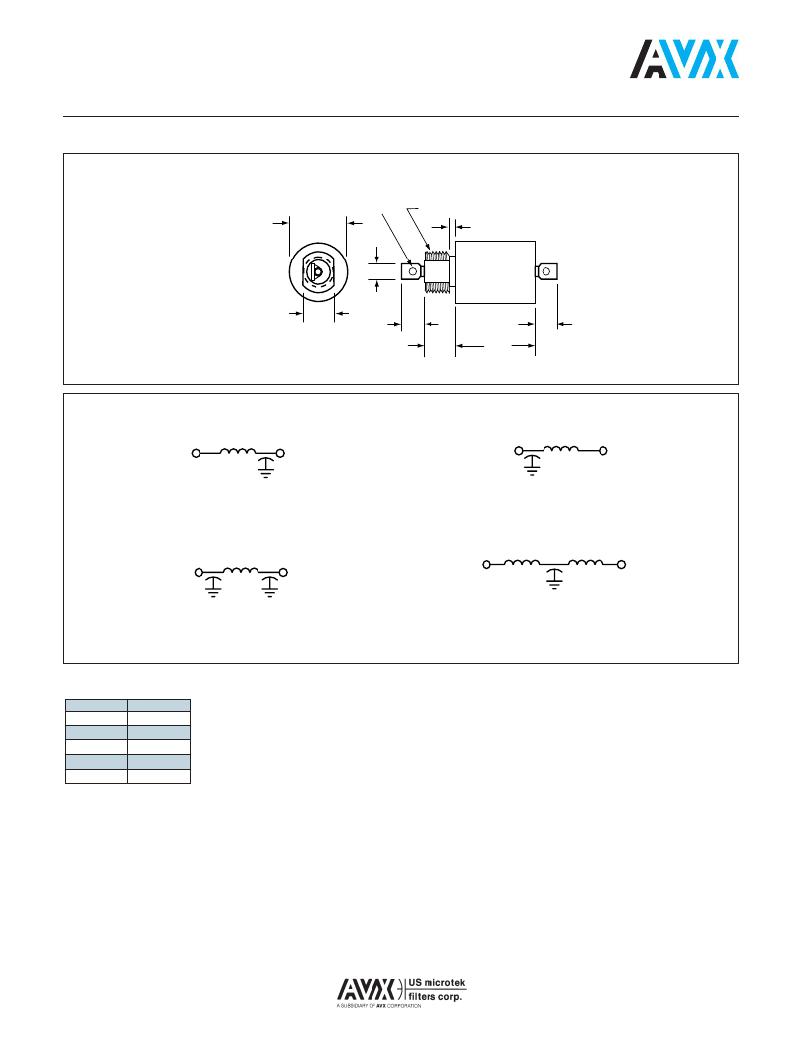

Cylindrical Style EMI Filters
GK Series – .375/.410 Dia.
Hermetically Sealed – Circuits Available – C, L, π , T
STANDARD CONFIGURATION
ALT. .410 DIA. MAX.
(See Note 3)
.375 DIA.
± .010
.070 ± .010
(2 PLC)
.115
.250-28 UNF-2A (1/4-28)
.050
*
.200
± .010
* = A FOR .187 ± .010 THREAD
B FOR .312 THREAD
REF.
.150
MAX.
± .010
L
± .031
.190
MAX
(See Note 1)
CIRCUIT DIAGRAMS
THRD
END
L 2
GK2 - Standard
Pi
GK3
THRD
END
L 1
GK2 - Reverse
T
GK4
millimeters (inches)
Notes:
0.25 (.010) 4.75 (.187)
0.79 (.031) 4.83 (.190)
1.27 (.050) 5.08 (.200)
1.78 (.070) 7.93 (.312)
2.92 (.115) 9.53 (.375)
1. Thread length option. Standard part
numbers shown (e.g., GK2BA-S02)
are .187" thread length. Optional .312
length available (e.g., GK2BB-S02).
2. Metric equivalent dimensions given
for information only.
3. All QPL MIL-F-28861, and Hi-rel, will
be supplied with .410 diameter (HK).
See applicable slash sheet for
mechanical dimensions.
* = A for .187 ±.010 Thread
B for .312 Thread
(See Note 1)
3.81 (.150) 13.72 (.540)
(See Note 2)
36
